Poly Trio 8800

LARGE ROOMS, UNLIMITED POSSIBILITIES

Supplying room-filling audio to large meeting rooms might be a challenge for some conference phones. Not for Trio 8800. Specially tuned mics catch every word in a 20-foot range. Wi-Fi, USB and Bluetooth® connectivity is built in. And video conferencing and content sharing can be easily added, ensuring future-proof flexibility. Get ready to transform your large spaces into powerhouses for collaboration.

KEY FEATURES:

POLY SIGNATURE AUDIO: For a conference call that gets results, Poly audio ensures every inflection is heard, without the distracting background noise. Hear their reaction with up to 22 kHz of rich, full sound.
ALL KINDS OF CONNECTIONS: Collaborate using audio, video, content or all three. The Trio 8800 helps teams make decisions faster through a variety of meeting options.
HYBRID REGISTRATION: Connect to the platform you like best. Connect to one or multiple leading SIP and Cloud Conferencing Services at the same time—no need to choose just one.
ONE-TOUCH JOIN: Join a meeting in seconds with a single touch of a button and keep your meeting time productive.
SIMPLE MEETING CONTROL: Conveniently placed illuminated mute indicators on each leg of the device are within easy reach—so everyone can clearly see when the mic is live and when it’s muted.
BLUETOOTH®/NFC: Easily connect your mobile device or laptop via Bluetooth®/NFC or USB, and use Trio as the speakerphone to enhance the audio experience of personal devices.
NETWORK CONNECTIVITY: Supports IP Standards based communication, PoE/PoE+, Wi-Fi (2.4/5GHz). BYOD connectivity via Bluetooth, & USB mode.
5” COLOR TOUCH DISPLAY: The 5" color touch display puts familiar, easy-to-use icons and user controls at your fingertips for quick meeting starts —and calendar integration ensures your meetings get started in seconds with one-touch-join.

SPECIFICATIONS:

USER INTERFACE FEATURES:

Gesture-based, multitouch-capable capacitive touch screen
5-inch color LCD (720 x 1280 pixel), 9:16aspect ratio
On-screen virtual keyboard
1 USB 2.0 Type A-compliant port USB battery charging BC1.2 compliant (requires full Class 4 power input on LAN IN for operation)
1x USB 2.0 Micro-B device port for use as USB audio device
Integrated Bluetooth 4.0 and NFC
3 multicolored capacitive-touch mute indicators
Unicode UTF-8-character support
User interface localized in Arabic, Chinese, Danish, Dutch, English (Canada/US/UK),French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish and Swedish

AUDIO FEATURES:

3 cardioid microphones
Loudspeaker

Frequency: 100-22,000 Hz
Volume: 92 dB at 0.5-m peak volume

6 m/20 ft microphone pickup range
Supported codecs:

G.711 (A-law and μ-law)
G.719
G.722, G722.1, G722.1C
G.729AB
Poly Siren 7, Siren 14
iLBC (3.33Kbps and 15.2Kbps)
Opus (8Kbps - 24Kbps)
SILK
Poly Acoustic Clarity technology provides full-duplex conversations, acoustic echo cancellation and background noise suppression–Type 1 compliant (IEEE 1329 full duplex)

Poly NoiseBlock
Voice activity detection
Comfort noise generation
DTMF tone generation (RFC 2833 and in-band)
Bluetooth device pairing for wideband speech and multimedia streaming (HFP/AD2P)
Low-delay audio packet transmission
Adaptive jitter buffers
Packet loss concealment

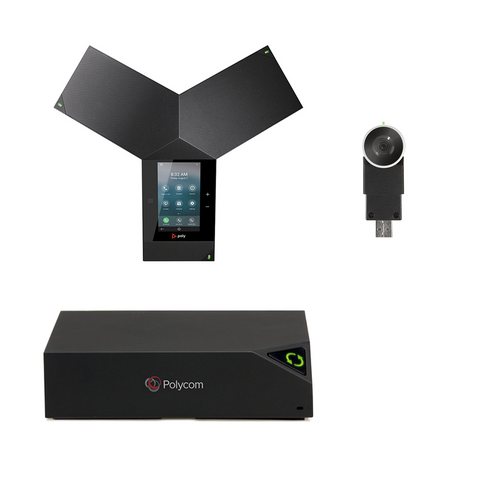

VIDEO CONFERENCING AND CONTENT SHARING OPTIONS:

Compatible with Trio Visual+ & VisualPro codecs with supported cameras

CALL HANDLING FEATURES:
(MAY BE DEPENDENT ON CONFIGURATION AND ECOSYSTEM)

Up to three lines (max. one Skype for Business and Microsoft Teams)
Shared call/bridged line appearance
Distinctive incoming call treatment/call waiting
Call timer and call waiting
Call transfer, hold, divert (forward), pickup
Called, calling, connected-party information
One-touch speed dial and meeting join
Local five-way audio conferencing
Daisy-chain up to four Trios total
Do-not-disturb function
Local configurable digit map/dial plan
Corporate directory access using LDAP
Visual conference management

NETWORK AND PROVISIONING:

Open SIP
Skype for Business certified1
Microsoft Teams certified1
Zoom certified
IETF SIP (RFC 3261 and companion RFCs)
Two-port gigabit Ethernet switch

10/100/1000Base-TX across LAN and 2nd port
2nd port supports IEEE 802.3af PSE

Wi-Fi network connectivity

2.4–2.4835 GHz (802.11b, 802.11g,802.11n HT-20)
5.15–5.825 GHz (802.11a, 802.11n, HT-20, 802.11n HT-40)

Manual or dynamic host configuration protocol (DHCP) network setup
Time and date synchronization using SNTP
FTP/TFTP/HTTP/HTTPS server-based central provisioning
RealPresence Resource Manager (v. 10.1 or above) based provisioning
Poly Zero Touch Provisioning
Provisioning and call server redundancy support

RealPresence Resource Manager (v 10.1 or above) based provisioning
PDMS-E, PDMS-SP

QoS support

IEEE 802.1p/Q tagging (VLAN), layer 3 TOS, and DSCP
WMM (Wi-Fi multimedia)
VLAN – CDP, DHCP VLAN discovery
LLDP-MED for VLAN discovery

SECURITY:

802.1X authentication and EAPOL
Media encryption via SRTP
Transport layer security (TLS) v 1.2
Encrypted con0xFB01guration 0xFB01les
Digest authentication
Password login
Support for URL syntax with password for boot server address
HTTPS secure provisioning
Support for signed software executables
Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2)

POWER:

LAN IN: Built-in auto-sensing IEEE 802.3at. PoE Device (Class 4) (requires full Class 4 power input on LAN IN for operation). Backward compatibility with IEEE 802.3af
LAN OUT: Built-in auto-sensing IEEE 802.3af power sourcing equipment (requires full Class 4 power input on LAN IN for operation)

PHONE DIMENSIONS (L X W X H):

38.3 x 7.5 x 33.2 cm (15.1 x 2.9 x 13.1 in)
Unit weight: 950 g/2.1 lbs

BOX DIMENSIONS (L X W X H);

48.3 x 11.5 x 39.4 cm (19 x 4.5 x 15.5 in)
Box weight: 1970 g/4.3 lbs

PACKAGE INCLUDES:

Trio 8800 Phone Console (open SIP): 2200-66070-001
7.6-m/25-foot network cable CAT 5e
2-m/6.5-foot USB 2.0 cable

OPTIONAL ACCESSORIES:

Poly Trio Expansion Microphones (2200-65790-001)
Power kit incl. ext. single-port gigabit midspan, 802.3at Type 2 compliant, local power cord and network cable (7200-23490-xxx)

WARRANTY:

2-year limited hardware replacement warranty against manufacturing defects

Poly Trio 8800 IP Conference Phone (openSIP)
