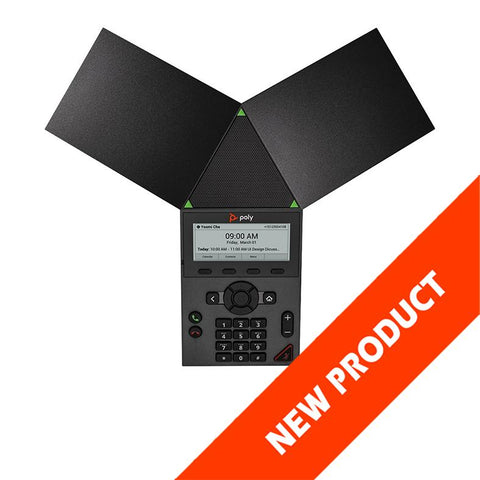

Poly Trio 8300

GO BIG IN A SMALL ROOM

Think your small meeting room has limited possibilities? Think again. Poly Trio 8300 transforms any small conference hub into a smart collaboration space with the touch of a button. Plus, you get future-proof flexibility with the option to easily add video conferencing and content sharing accessories. Help your teams get more done in less space—and make meetings more engaging for everyone.

KEY FEATURES:

POLY SIGNATURE AUDIO: For a conference call that gets results, Poly audio ensures every inflection is heard, without the distracting background noise. Hear their reaction with up to 14 kHz of rich, full sound.
ALL KINDS OF CONNECTIONS: Collaborate using audio, video, content or all three. The Trio 8300 helps teams make decisions faster through a variety of meeting options.
HYBRID REGISTRATION: Connect to the platform you like best. Connect to one or multiple leading SIP and Cloud Conferencing Services at the same time—no need to choose just one.
ONE-TOUCH JOIN: Join a meeting in seconds with a single touch of a button and keep your meeting time productive.
A CLASSIC KEYPAD: Classic keypad and LCD display with simple-to-use menu navigation.
SIMPLE MEETING CONTROL: Conveniently placed, illuminated mute and volume controls.
NETWORK CONNECTIVITY: Supports IP Standards based communication, PoE/PoE+, Wi-Fi (2.4/5GHz). BYOD connectivity via Bluetooth, & USB mode.

SPECIFICATIONS:

USER INTERFACE FEATURES:

3.5” LED Screen
Classic 12-key keypad
6 soft keys enable you to select context sensitive keys that display along the bottom of the screen.
1 USB 2.0 Type A-compliant port USB battery charging BC1.2 compliant (requires full Class 4 power input on LAN IN for operation)
Integrated Bluetooth 4.0

AUDIO FEATURES:

Three cardioid microphones
Loudspeaker

Frequency: 220-14,000 Hz
Volume: 90 dB at 0.5-m peak volume

3.7 m/12 ft microphone pickup range
Supported codecs:

G.711 (A-law and μ-law)
G.719
G.722, G722.1, G722.1C
G.729AB
Poly Siren 7, Siren 14
iLBC (3.33Kbps and 15.2Kbps)
Opus (8Kbps - 24Kbps)
SILK

Poly NoiseBlock
Voice activity detection
Comfort noise generation
DTMF tone generation (RFC 2833 and in-band)
Bluetooth device pairing for wideband speech and multimedia streaming (HFP/AD2P)
Low-delay audio packet transmission
Adaptive jitter buffers
Packet loss concealment

VIDEO CONFERENCING AND CONTENT SHARING OPTIONS:

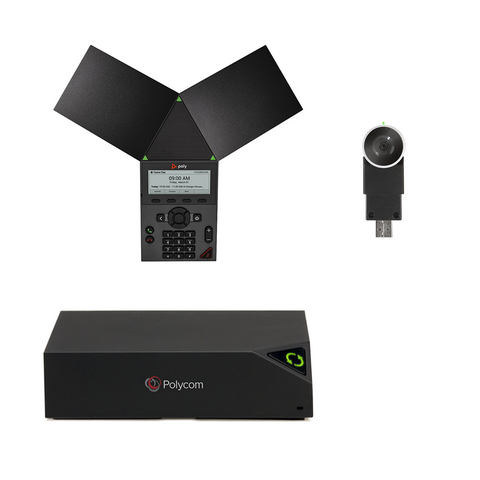

Compatible with Trio Visual+codec with supported cameras

CALL HANDLING FEATURES:
(MAY BE DEPENDENT ON CONFIGURATION AND ECOSYSTEM)

Up to three lines (max. one Skype for Business and Microsoft Teams)
Shared call/bridged line appearance
Distinctive incoming call treatment/call waiting
Call timer and call waiting
Call transfer, hold, divert (forward), pickup
Called, calling, connected-party information
One-touch speed dial and meeting join
Local three-way audio conferencing
Do-not-disturb function
Local configurable digit map/dial plan
Corporate directory access using LDAP
Visual conference management

NETWORK AND PROVISIONING:

IETF SIP (RFC 3261 and companion RFCs)
SDP
Single-port gigabit Ethernet 10/100/1000Base-TX across LAN
Wi-Fi network connectivity

2.4–2.4835 GHz (802.11b, 802.11g, 802.11n HT20)
5.15–5.825 GHz (802.11a)

Manual or dynamic host configuration protocol (DHCP) network setup
Time and date synchronization using SNTP
FTP/TFTP/HTTP/HTTPS server-based central provisioning
RealPresence Resource Manager (v 10.7 or above) based provisioning
Provisioning and call server redundancy support
Polycom Zero Touch Provisioning
PDMS-E, PDMS-SP
QOS SUPPORT

IEEE 802.1p/Q tagging (VLAN), layer 3 TOS, and DSCP
VLAN-CDP, DHCP VLAN discovery
LLDP-MED for VLAN discovery

SECURITY:

FIPS 140-2 compliant cryptographic module
802.1X authentication and EAPOL
Media encryption via SRTP
Transport layer security (TLS) v1.2
Encrypted configuration files
Digest authentication
Password login
Support for URL syntax with password for boot server address
HTTPS secure provisioning
Support for signed software executables
Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2)2

POWER:

LAN IN: Built-in auto-sensing IEEE 802.3af. PoE Device (Class 0)

PHONE DIMENSIONS (L X W X H):

33.9 x 29.4 x 6 cm (13.3 x 11.5 x 2.4 in)
Unit weight: 735 g (1.62 lbs)

BOX DIMENSIONS (L X W X H);

40 x 36 x 8.5 cm (15.7 x 14.1 x 3.5 in)
Box weight: 1.76 Kg (2.2 lbs)

PACKAGE INCLUDES:

Trio 8300 conference Phone: 2200-66840-xxx
7.6-m/25-foot network cable CAT 5e
Setup Sheet

OPTIONAL ACCESSORIES:

Poly Trio Expansion Microphones (2200-65790-001)
Power kit incl. ext. single-port gigabit midspan, 802.3at Type 2 compliant, local power cord and network cable (2200-66840-122)

WARRANTY:

2-year limited hardware replacement warranty against manufacturing defects

Poly Trio 8300 IP Conference Phone (openSIP)
