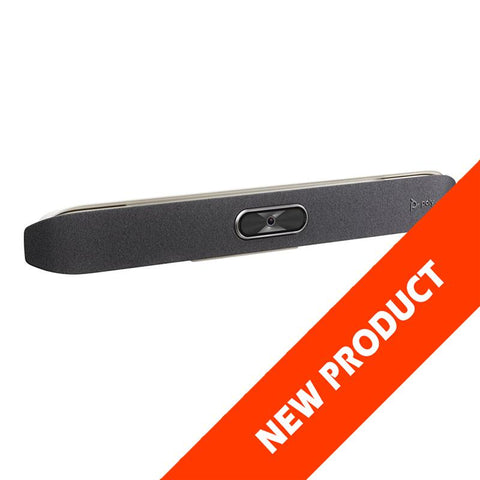

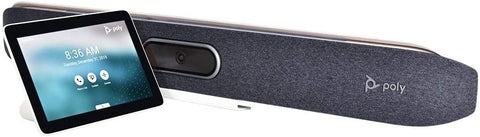

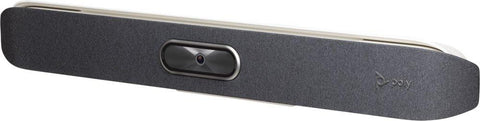

Poly Studio X50

RADICALLY SIMPLE VIDEO CONFERENCING.

Experience full board-room-quality audio, and knock-your-socks-off video, for mid-sized rooms. The Poly Studio X50 all-in-one video bar is radically simple to use with support for leading cloud video services built right in—no PC or Mac required. Voices are crisp and clear. Video feels natural. And wireless content sharing lets users collaborate from their devices without cables or pucks.

KEY FEATURES:

RICH, ROOM FILLING AUDIO: High performance stereo speakers with a unique acoustic chamber design delivers rich audio that reaches all parts of the room.
ADVANCED MICROPHONE DESIGN: Unique second order gradient microphones pick up all corners of the room with incredible clarity.
SMART CAMERA: Feel connected with production-quality camera framing and tracking that keeps the visual focus in the right place throughout the conversation.
NOISE BLOCKING INNOVATIONS: Keep distracting noise and outside conversations from disrupting your meeting with Poly NoiseBlockAI and Acoustic Fence.
NATIVE CLOUD VIDEO SOFTWARE APPS BUILT RIGHT IN: No PC or Mac needed for always-on connectivity to your favorite video platforms.

Zoom Certified
Microsoft Teams Certified
All cloud service providers through Poly Video App Mode
USB device mode
Support for native 3rd party applications includes Zoom, Microsoft Teams, 8x8, GoToRoom, RingCentral and StarLeaf

DUAL DISPLAY SUPPORT: Connect two monitors to see both people and content in full size.

Poly Studio X50

SPECIFICATIONS:

CAMERA

5x digital zoom
120° FOV
UHD 2160p (4K) capture resolution
Automatic people framing
Automatic speaker tracking
Secondary cameras can be added via USB and HDMI

AUDIO INPUT

3x MEMS microphones, plus 2x 2nd order microphones
1x HDMI
1x 3.5 mm line-in
Microphone pickup range 25 ft
USB audio

AUDIO OUTPUT

Stereo speakers

Power Handling (RMS) 20 Watts
Power Handling (MAX) 40 Watts
Sensitivity 86.1 dB

3.5 mm audio output

OTHER INTERFACES

2x USB-A (3.0)
1x USB-C
Bluetooth 5.0**
WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency**

AUDIO STANDARDS AND PROTOCOLS

22 kHz bandwidth with Polycom Siren 22 technology
20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology
14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
7 kHz bandwidth with G.722, G.722.1
3.4 kHz bandwidth with G.711, G.728, G.729A

DIMENSIONS:

30 W x 4 H x 4 D (Inches)
762 W x 102 H x 102 D (MM)
5.6 lbs/2.54 kg

VIDEO STANDARDS AND PROTOCOLS

H.264 AVC, H.264 High Profile, H.265, H.239

VIDEO INPUT

1x HDMI

VIDEO OUT

2x HDMI
Touch display compatible

PEOPLE VIDEO RESOLUTION

4K, 30 fps (TX and RX) from 2048 Kbps
1080p, 60 fps from 1740 Kbps
1080p, 30 fps from 1024 Kbps
720p, 60 fps from 832 Kbps
720p, 30 fps from 512 Kbps

CONTENT VIDEO RESOLUTION

Input

UHD (3840 x 2160)
HD (1920 x 1080p)
WSXGA+ (1680 x 1050)
UXGA (1600 x 1200)
SXGA (1280 x 1024)
WXGA (1280 x 768)
HD (1280 x 720p)
XGA (1024 x 768)
SVGA (800 x 600)

Output

UHD (3840 x 2160)
WUXGA (1920 x 1200)
HD (1920 x 1080)
WSXGA+ (1680 x 1050)
SXGA+ (1400 x 1050)
SXGA (1280 x 1024)
HD (1280 x 720)
XGA (1024 x 768)

Content frame rate

5–60 fps (up to 4K resolution at 15 fps in call)

CONTENT SHARING

Poly content app
Apple Airplay
Miracast
HDMI input
Whiteboarding

NETWORK

IPv4
IPv6
1x 10/100/1G Ethernet
Auto-MDIX
H.323 and/or SIP up to 6 Mbps running Poly Video App
Polycom Lost Packet Recovery (LPR) technology
Dynamic bandwidth allocation
Reconfigurable MTU size
Web proxy support—Basic, Digest, and NTLM
Simple Certificate Enrollment Protocol (SCEP)

POWER SUPPLY:

Auto sensing power supply
Typical operating voltage/power

37 VA @ 120 V @ 60 Hz
37 VA @ 230 V @ 50/60 Hz

Typical BTU/h: 65

PACKAGE INCLUDES:

Poly Studio X50
Cable bundle
Wall mount
Privacy cover

OPTIONAL ACCESSORIES:

VESA mount kit
Stand
Poly TC8
Poly Bluetooth remote control
Poly Trio
Studio Extension Microphone

WARRANTY

2-year limited hardware replacement warranty against manufacturing defects

Poly Studio X50 IP Video Bar with Auto Speaker Track 4K 5x Zoom 120° FOV Camera (P017)
